Circular finder
【Technical function】

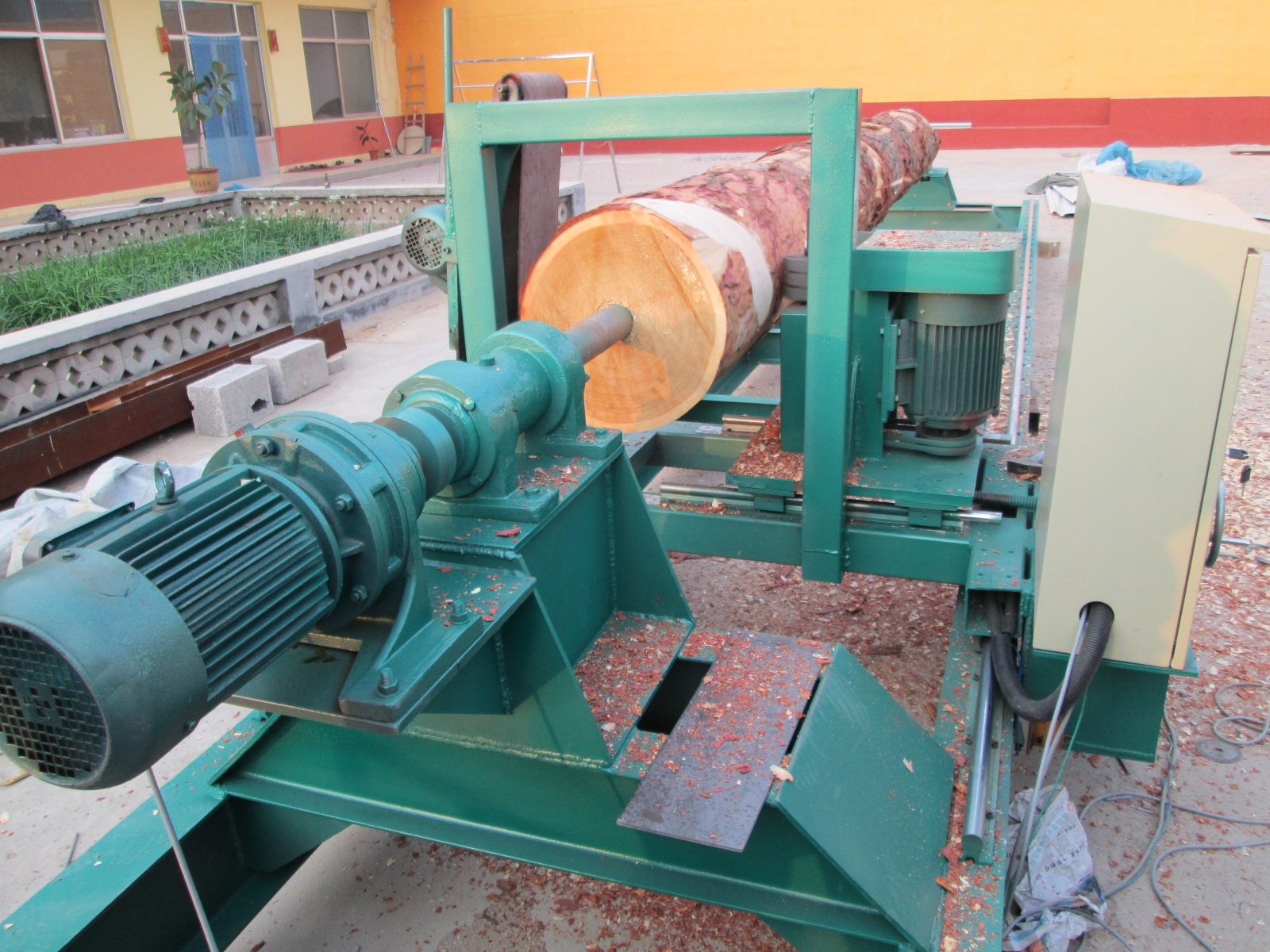

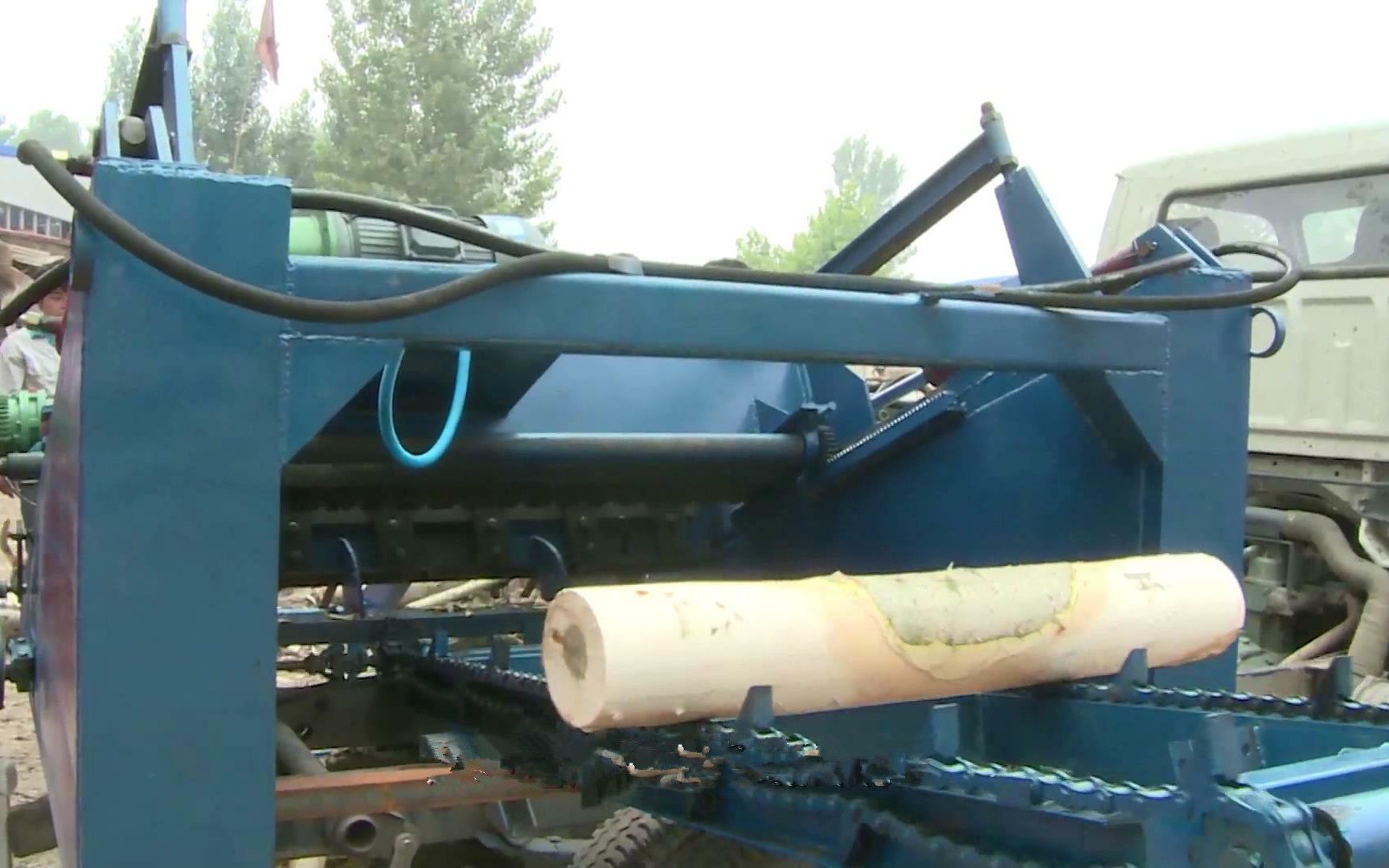

The circular finding machine consists of a frame, clamping device, cutting cutter head, power system, control system, discharge conveyor belt and other parts. It is fixed at both ends of the log by hydraulic or mechanical clamping device, the log rotates at a constant speed, the cutter head (or tool group) feeds along the axis, cuts off the skin and irregular parts, and trims the irregular log into a regular cylinder. Provide standardized raw materials for subsequent rotary veneer cutting or planing processes.
Product application value and advantages
【Improve the utilization rate of materials】
After rounding, the log reduces the waste of rotary cutting, and the output rate of veneer increases by 10% to 15%
【Ensure process continuity】
Regular cylindrical logs ensure stable operation of the rotary cutting machine and reduce the rate of plate breakage
【Reduce labor costs】
Fully automatic models reduce manual intervention and achieve 24-hour continuous operation
Product detailed parameters
|
Processing customization |
YES |
brand |
CONSMOS |
Model number |
CM-CF-021 |
|
type |
Look for the round machine |
Working form |
Fully automatic/Semi-automatic |
Product type |
Brand new |
|
Rated power |
19（kw） |
Overall dimension |
3200*1900*1300 (mm) |
Maximum working length |
1400（mm） |
|
Maximum machining thickness |
0.2-8（mm） |
Maximum working width |
1400 (mm) |
Machine weight |
2T |
|
Feed rate |
One in five seconds |
Scope of application |
Eucalyptus, pine, poplar, elm, fir and so on |
Rated voltage |
380V |
