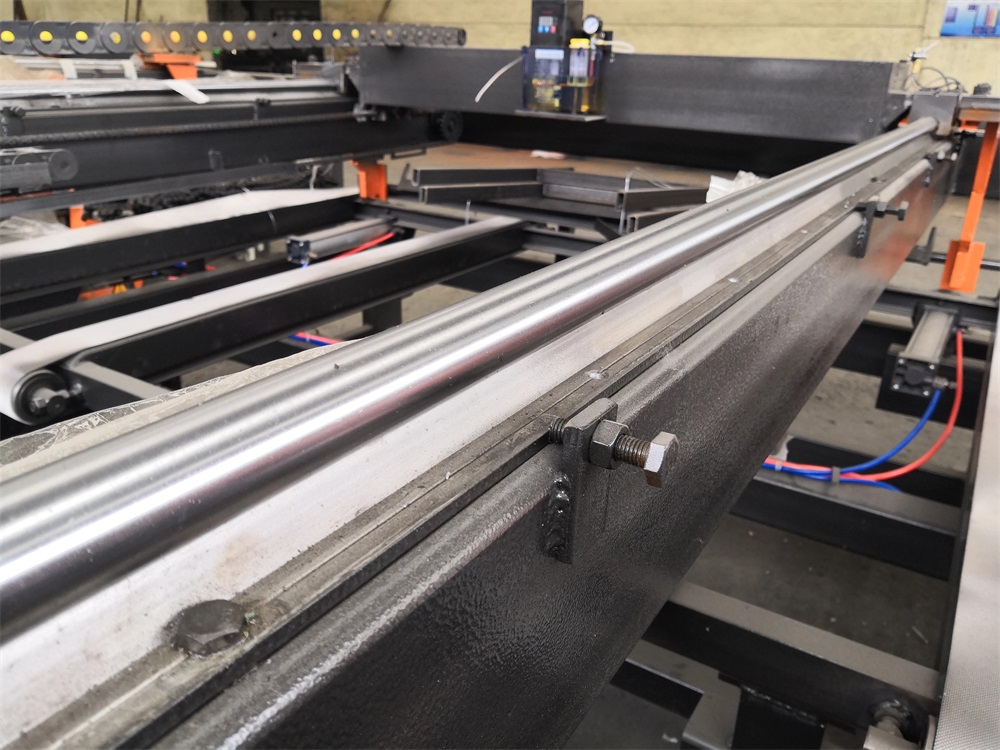

Edging machine
【Technical function】
The edge sawing machine drives the cutting device through the mechanical or numerical control system to cut the edge of the plywood billet, cut the plate into a standard size according to the process requirements, meet the subsequent processing or market demand, eliminate the burrs and rough edges generated in the sawing process, and improve the smoothness and quality of the edge of the plate.
Product application value and advantages
【Efficient production】
Fully automated designs that reduce manual operations, such as servo control and automatic stacking, significantly reduce single batch processing times
【Precision and quality】
Infrared positioning and numerical control technology ensure high straightness of cutting, smooth edges without burrs, and reduce subsequent grinding processes
【Strong adaptability】
Support multi-dimensional adjustment and different plate types, such as multi-layer board, joinery board, etc., high flexibility
Product detailed parameters
|
Edge width |
915mm~1250mm/1830mm~2500mm |
|
Circular saw size |
Ф305mm×Ф60mm×3.5mm Ф120mm×Ф20mm×3.2mm |
|
Circular saw speed |
5000rpm-6000rpm/min |
|
Circular saw over table height range |
10mm~30mm |
|
Sawing thickness range |
2.5~30 |
|
Power |
16.5kw |
